Ram 1500/2500/3500: Cupholders

Front Seat Cupholders (40-20-40 Seats)

The cupholders are located on the backside of the center portion of the front seat (20). Fold down the center section of the front seat to gain access to the cupholders.

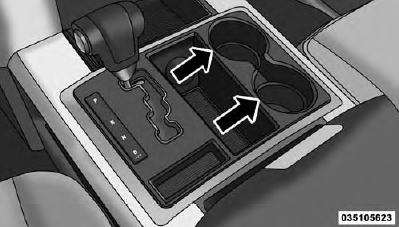

Front Instrument Panel Cupholders - Floor Mounted Shifter

For vehicles equipped with bucket seats there are two cupholders located in the floor console.

Cupholders
Cupholders

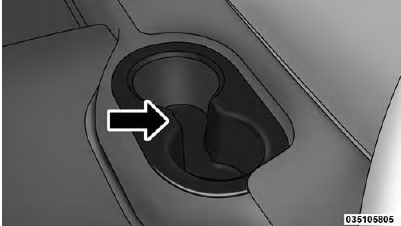

Rear Cupholder - Quad Cab

Quad Cab vehicles may be equipped with a rear cupholder that consists of two cup wells for rear passenger convenience.

Cupholders
Rear Cup Wells

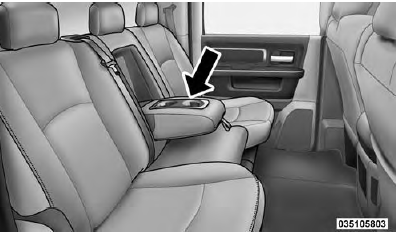

Rear Cupholder - Crew Cab

Crew Cab vehicles are equipped with rear cupholders located in the center armrest.

Cupholders
Crew Cab Rear Armrest Cupholder

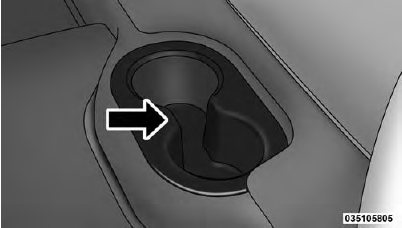

Crew Cab vehicles may be equipped with a rear cupholder that consists of two cup wells for rear passenger convenience.

Cupholders
Rear Cup Wells
