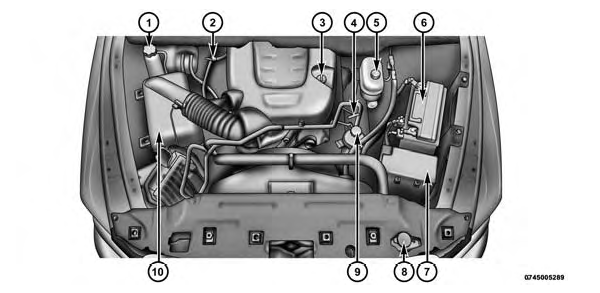

Engine Compartment - 6.4L

  1. Coolant Pressure Bottle
  2. Transmission Dipstick
  3. Engine Oil Fill
  4. Engine Oil Dipstick
  5. Brake Fluid Reservoir
  6. Battery
  7. Power Distribution Center (Fuses)
  8. Washer Solvent
  9. Power Steering Fluid Reservoir
  10. Air Cleaner Filter
