Ram 1500/2500/3500: Tri-Fold Tonneau Cover Removal

To remove the Tonneau Cover follow the following steps:

1. Lower the tailgate to gain access to the first set of two tonneau cover clamps located on the driver and passengers bottom side of the tonneau cover.

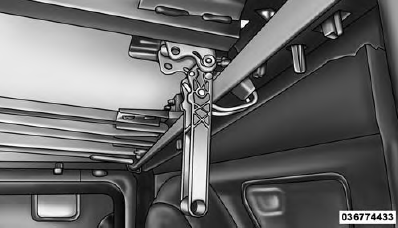

Tri-Fold Tonneau Cover - If Equipped
Clamped Position

NOTE: If clamp wire is damaged replace immediately.

2. Pull down on the first set of clamps on both driver and passenger sides to the semi clamped position.

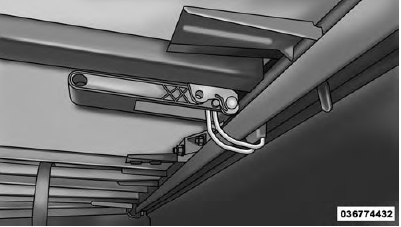

Tri-Fold Tonneau Cover - If Equipped
Semi Clamped Position

3. Pull down on the clamp wire and push the clamp up into the proper released position.

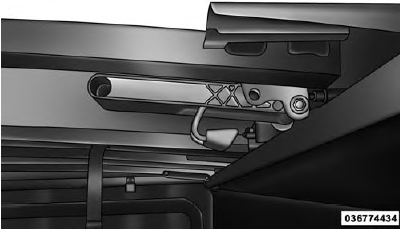

Tri-Fold Tonneau Cover - If Equipped
Proper Released Position

NOTE: Be sure the clamp and clamp wire is in the proper released position.

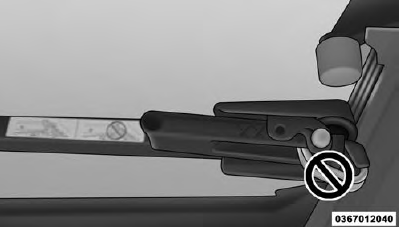

Tri-Fold Tonneau Cover - If Equipped
Improper Clamp Wire Released Position

CAUTION! Make sure the tonneau cover clamp and clamp wire is in the proper released position. If the clamp and clamp wire is not properly released, damage to the tonneau cover material will result.

4. Pick up on the tonneau cover and fold it back into the second panel.

5. Pick up on the cover and fold it back into the third panel.

6. Once in the third panel position pull down on the second set of clamps on both driver and passenger sides to the semi clamped position.

Tri-Fold Tonneau Cover - If Equipped
Semi Clamped Position

7. Pull down on the clamp wire and push the clamp up into the proper released position.

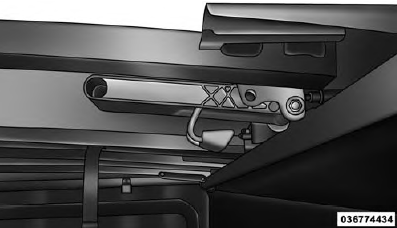

Tri-Fold Tonneau Cover - If Equipped
Proper Released Position

8. Be sure to clip both stowage straps together to insure the cover stays together.

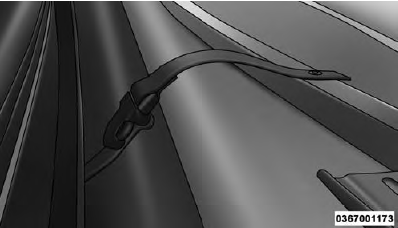

Tri-Fold Tonneau Cover - If Equipped
Stowage Strap

9. With two people remove the cover.

NOTE: Be sure the Tonneau Cover has been folded completely before removing.
