Ram 1500/2500/3500: Driver Memory Seat - If Equipped
Ram Truck 1500 2500 3500 (2009 - 2018) Owner's Manual / Understanding The Features Of Your Vehicle / Driver Memory Seat - If Equipped
This feature allows the driver to store up to two different memory profiles for easy recall through a memory switch. Each memory profile contains desired position settings for the driver seat, side mirrors, adjustable pedals (if equipped) and a set of desired radio station presets. Your Remote Keyless Entry (RKE) transmitter can also be programmed to recall the same positions when the UNLOCK button is pressed.
NOTE: Your vehicle is equipped with two RKE transmitters.
One RKE transmitter can be linked to memory position 1 and the other transmitter can be linked to memory position 2.

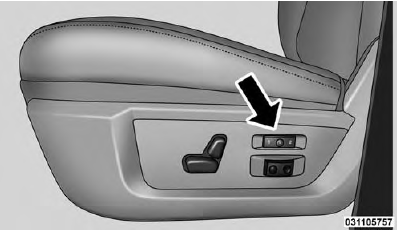

The memory seat buttons are located on the outboard side of the drivers seat cushion.
.png)
Memory Seat Buttons
- Programming The Memory Feature
- Linking And Unlinking The Remote Keyless Entry Transmitter To Memory
- Memory Position Recall
- Easy Entry/Exit Seat
