Ram 1500/2500/3500: Mega Cab Rear Seat Features

Reclining Rear Seats - If Equipped

The recliner handle is located on the outside of the seat cushion. To adjust the seatback, lift upward on the handle, lean back on the seatback and when you reach the desired position, release the handle.

Seats

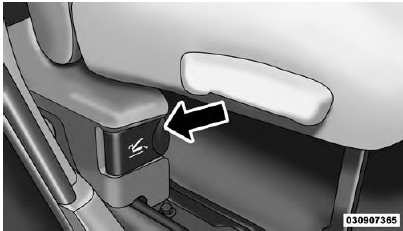

Rear Seat Recliner Handle

WARNING! Do not ride with the seatback reclined so that the shoulder belt is no longer resting against your chest.

In a collision you could slide under the seat belt, which could result in serious injury or death.

Folding Rear Seat (Table Mode) - If Equipped

Both the left and right rear seatbacks can be folded down and used as a table.

To fold down either rear seatback:

1. Lift the handle, located next to the head restraint.

Seats

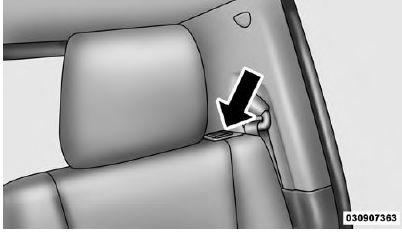

Table Mode Handle

2. Fold the seatback forward.

Seats

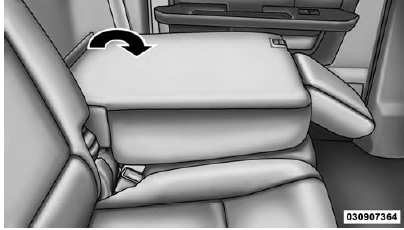

Table Mode

3. Lift the seatback, to return the seat to the upright position. Be sure the seatback is locked in place.

Folding Rear Seat - If Equipped

Both the outboard rear seats will drop and move forward when the seatback is folded flat.

WARNING!

  • It is dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed.
  • Do not allow people to ride in any area of your vehicle that is not equipped with seats and seat belts.
  • Be sure everyone in your vehicle is in a seat and using a seat belt properly.
  • Cargo must be securely tied down before driving your vehicle. Improperly secured cargo can fly around in a sudden stop or collision and strike someone in the vehicle, causing serious injury or death.

To fold either rear seat flat:

1. Lift the handle, located on the outboard side of either of the rear seats.

Seats

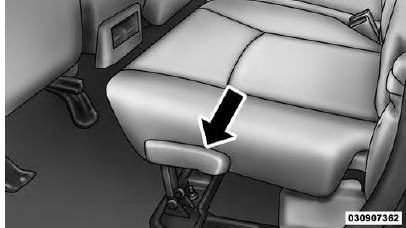

Folding Rear Seat Handle

2. Fold the seatback down and push the seat forward.

Seats

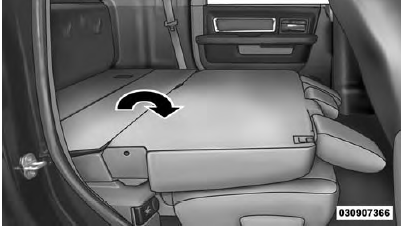

Rear Passenger Fold-Flat Seats

3. Lift the seatback, to return the seat to the upright position. Be sure the seat is locked in place.

WARNING! An improperly latched seat could cause serious injury or death. Make sure that the seatback is securely locked into position. If the seatback in not securely locked into position the seat will not provide the proper stability for child seats and/or passengers.
